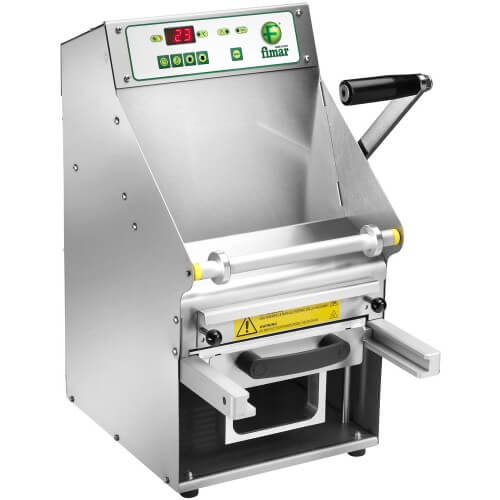

Stainless Steel Thermosealing Machine Automatic or Manual Film Width 20 cm Fimar TS2/A
Price range: € 2.454,99 through € 2.970,99 + VAT
Stainless steel thermosealing machine film width 20 cm Fimar TS2 and TS2A
Machine for thermo-sealing food inside trays allowing fragrance and taste to be maintained. Constructed of AISI 304 stainless steel, with plate
internal sealant to avoid burns, automatic film dragging without any manual help, electronic control of sealing temperature to perfectly seal the trays
TS2 MANUAL HEAT SEALER
- Manual sealing by lever pressure up to 9 preset programs.
- Six to eight cycles per minute of work.
- Equipped with multiform mold.

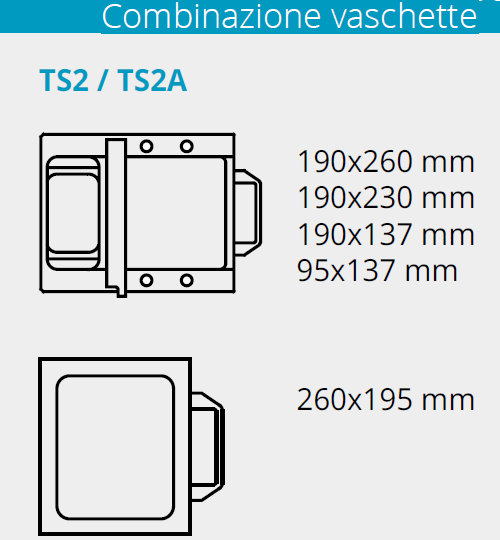

- Trays available upon request. Combination trays -190×260 mm - 190×230 mm - 190×137 mm - 95×137 mm - 260×195 mm.
TS2A AUTOMATIC HEAT SEALING MACHINE
- Automatic sealing
- Up to 9 preset programs.
- Five to eight cycles per minute of work.
- Reel length 150 Mt.
- Unique patented mold with various size combinations for different types of trays.
- Combination trays -190×260 mm - 190×230 mm - 190×137 mm - 95×137 mm - 260×195 mm.
DETAILS
- Constructed of stainless steel.
- Internal sealing plate to prevent burns.
- Automatic film dragging without any manual aid.
- Electronic control of sealing temperature to perfectly seal the trays.
- Features a unique patented mold with various size combinations for different types of trays.
- Available with manual sealing by lever pressure (TS1) or with automatic sealing (TS1A).
- 200 mm film width.
- A standards EC.
Technical data:
|
Model |
TS2 / TS2A |
| Power | 0.7 kW (1 HP) 0.75 kW (1 HP) |
| Power supply | 230V/1N/50Hz |
| Dimensions | 315x450x550(h)mm / 295x450x550(h)mm |
| Net Weight | 25 kg |
| Gross Weight | 28 kg |
| Dimensions Packaging | 320x460x570h mm |
| Packaging Volume | 0,0839 m³ |
| Pre-Set Programs | n° 9 |
| Cycles per minute | n°5-8 |
| Film reel width | 200 mm |
| Film reel diameter | 200 mm |
| Film reel length | 150 mt |
| Format Trays | Standard and customized |
| Automatic welding | No (TS2)
Yes (TS2A) |
Optional:
- Multiform Imprint Prints: 190×260 mm / 190×230 mm / 190×137 mm / 95×137 mm.
- Bonina size 200 mm - 150 m.
| Weight | 28 kg |
|---|---|
| Dimensions | 32 × 46 × 57 cm |
| Brand | |
| Version | Manual sealing, Automatic sealing |
