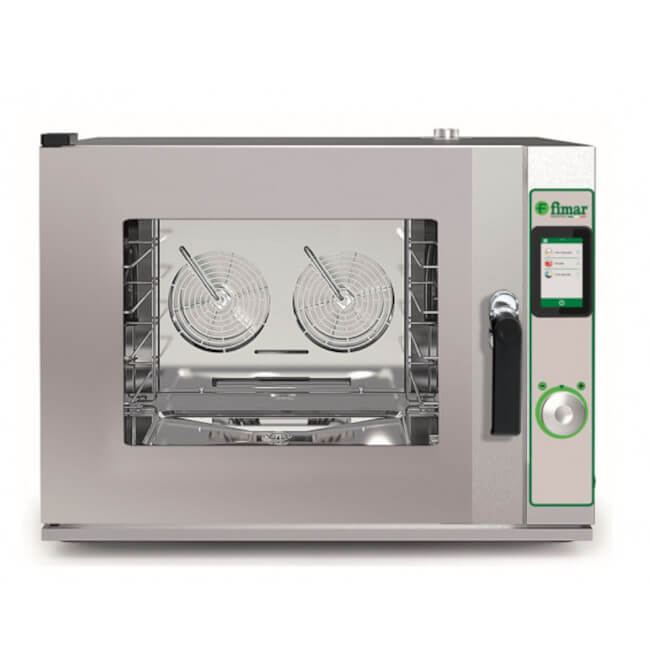

Mixed Touch Convection and Direct Steam Oven 4 Pans GN1/1 or 60x40cm Fimar TOP4TN
€ 3.464,00 + VAT
Forno misto touch convezione e vapore diretto GN1/1 N. 4 60×40 Fimar TOP4T
MIXED CONVECTION-STEAM OVEN DIRECT TOUCH TOP4TN
- Mixed touch convection/direct steam oven.
- Stainless steel structure.
- LED interior lighting.
- Ventilatore centrifugo con autoreverse, modello con 2 ventole.
- Double-glazed door (interior glass that can be opened).
- Water discharge.
- kit lavaggio di serie
- Supporto universale per teglie GN 1/1 o pasticceria 60×40 cm.
- Pans not included.
- Touch control with 120 programs (20 recipes already registered).
- Up to 6 firing cycles in automatic sequence per program.
- Automatic preheating.
- Fan up to 2 speeds.
- Steam regulator.
- Digital water injection adjustment.
- Probe to the heart.
- Integrated open/closed vent valve management.
- 5-inch capacitive touch screen.
- Connectivity via USB 2.0.
- According to EC.
Optional:
- Cappa a condensazione: in acciaio inox – due filtri antigrasso in acciaio inox – due velocità di estrazione.
- Supporti per forni: struttura in acciaio inox forniti in kit di montaggio.
- Stainless steel potato mesh GN1/1 h40.
- GN1/1 stainless steel grid.
- Stainless steel grill 60X40CM.
- Stainless steel pan GN1/1 H20.
- Stainless steel pan GN1/1 H40.
- Stainless steel pan GN1/1 H65.
- Teglia smaltata GN1/1 h20.
- Teglia smaltata GN1/1 h40.
- Teglia smaltata GN1/1 h65.
- GN1/1 aluminum baking pan.
- Teglia alluminio 60X40CM h20.
- Teglia forata alluminio 60X40 CM h20.
- Teglia alluminata 60X40 CM h20.
- Teglia blurex 60X40 CM h20.
Technical data:
|
Model |
TOP4TN |
| Power | 10,5 kW |
| Three phase power supply | 400V/3N/50-60HZ |
| Working temperatures | 50 ÷ 260 °C |
| Timer | Digital |
| Numero di teglie (non incluse) | 4 x 600 x 400 mm* GN1/1 – P= 80 mm |
| Capacity dimensions of the cooking chamber | 660 x 490 x 452h mm |
| Dimensions | 937 x 821/885* x 715h mm
*with/with handle |
| Net Weight | 89 kg |
| Gross Weight | 105 kg |
| Dimensioni Cappa (optional) | 790 x 1120 x 300(h) mm / 39kg |
| Dimensioni Supporto (optional) | 920 x 620 x 800(h) mm / 23kg |
* Teglie non incluse.
| Weight | 223 kg |
|---|---|
| Dimensions | 102 × 97 × 90 cm |
| Brand | |
| Color | Standard, Red |
